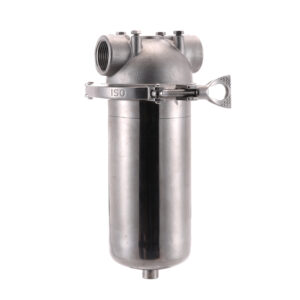

Clamp 5’’10’’20’’30’’PIPELINE FILTER HOUSING-PREFILTER

Product Features:

  • 150 Psig Maximum Operating Pressure Permits Use In A Wide Range Of Applications
  • Innovative Housing Design, Flexible Application For Other SOE Or DOE Cartridges
  • Swing Eye Bolt Closure Design Allows Quick and Easy Cartridge Change Out
  • Accepts 12-147 Round Design with 4’’,10’’,20’’, And 30’’ Cartridges, Also can Design With Customer’s Request
  • Housings can be Designed for Reverse Flow Applications
  • Electro polished Finish Is Available

Details:













Specification



Head 304 stainless steel
Shell 304 stainless steel
Mounting Braket 304 stainless steel


Gasket/O-rings
stendard
Optional:EPDM
Nut SUS 304


Dimentions

Inlet/Outlet 3/4″ NPT,ANSI Flange
Vent/Gauge 1/4″ NPT
Drain 1/4″ NPT
Connection Types JIS, DIN Flanged,PT,BSP


Performance





Maximum Operating Pressure



150 psig(10.3bar)@200℉(93℃)



Dimension Data:



Ordering Information:
