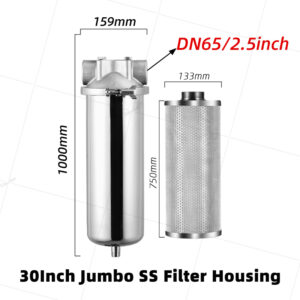

DN65 JUMBO 20”30”STAINLESS STEEL FILTER HOUSING

Product Features:

• 150 Psig Maximum Operating Pressure Permits Use In A Wide Range Of Applications
• Innovative Housing Design, Flexible Application For Other SOE Or DOE Cartridges
• Swing Eye Bolt Closure Design Allows Quick and Easy Cartridge Change Out
• Accepts 12-147 Round Design with 4’’,10’’,20’’, And 30’’ Cartridges, Also can Design With Customer’s Request
• Housings can be Designed for Reverse Flow Applications
• Electro polished Finish Is Available
• Details:


  Specification	Head	304 stainless steel
  	Shell	304 stainless steel
  	Mounting Braket	304 stainless steel
  	Gasket/O-rings	stendard
  		Optional:EPDM
  	Nut	SUS 304
  Dimentions	Inlet/Outlet	3/4″ NPT,ANSI Flange
  	Vent/Gauge	1/4″ NPT
  	Drain	1/4″ NPT
  	Connection Types	JIS, DIN Flanged,PT,BSP
  Performance	Maximum Operating Pressure	150 psig(10.3bar)@200℉(93℃)



  Dimension Data:





  Ordering Information:
