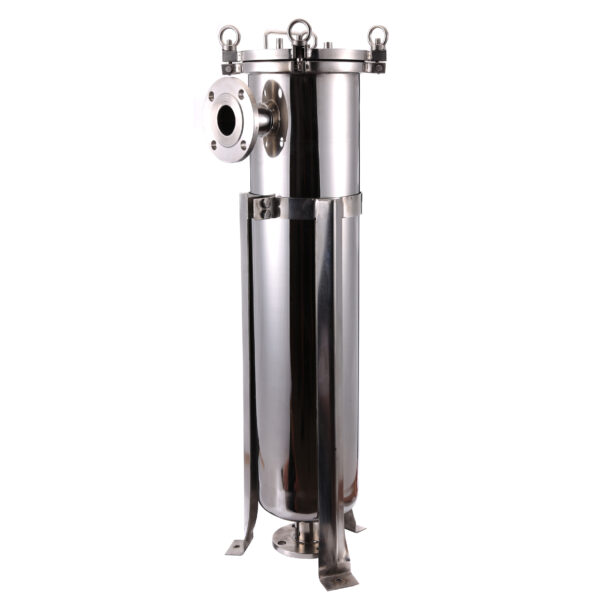

STAINLESS STEEL BAG FILTER WITH FLAT CAP-PRECISION FILTER

why choose bag filters ? Bag filter is a kind of multi-purpose filtration equipment with novel structure, small volume, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability, and a new type of filtration system. The filter bag is supported by a metal mesh basket inside, the liquid flows in from the inlet, and flows out from the outlet after being filtered by the filter bag.

Compact structure and reasonable size. Simple and convenient installation and operation, small footprint, high filtration accuracy, suitable for any fine particles or suspended solids, the filtration range can be from 0.5 to 200 microns, the processing flow per unit filtration area is large, the filtration resistance is small, and the filtration efficient. The filtering function of a liquid filter bag is equivalent to 5-10 times of the filter element, which can greatly reduce the cost; the designed flow rate can meet the requirements of 1-500m3/h, and the cost is low.

A stainless steel bag filter with a flat cap is a type of precision filter used for industrial filtration needs. It is designed to remove fine particles and suspended solids from liquids. Here are some key features and information about stainless steel bag filters with flat caps:

Construction: These bag filters are made of high-quality 304 /316stainless steel, which provides durability and resistance to corrosion .

Filtration Efficiency: The bag filter uses a filter bag supported by a metal mesh basket inside. The liquid flows into the filter through the inlet and passes through the filter bag, trapping the particles and solids. The filtered liquid then flows out through the outlet .

Filtration Range: Stainless steel bag filters with flat caps can effectively filter particles ranging from 0.5 to 200 microns .

Flow Rate: These filters are designed to handle a large processing flow per unit filtration area, resulting in high flow rates. The flow rate can range from 1 to 500m3/h, making them suitable for various industrial applications .

Pressure Rating: The maximum working pressure for these bag filters is typically 150 psi .

Operating Temperature: The normal operating temperature range for these filters is 50°F – 90°F. It’s important to note that liquids operating at elevated temperatures may affect the maximum operating pressure rating .

Easy Maintenance: Stainless steel bag filters with flat caps are designed for easy maintenance. They often come with a drain port, mounting stand, and a safety release vent for maintenance purposes .

Cost-Effective: Bag filters offer a cost-effective filtration solution compared to other types of filters. The filtering function of a liquid filter bag is equivalent to 5-10 times that of a filter element, resulting in cost savings .
